Retaining Wall Design: Step-by-Step Guide with Example

Calculate your retaining walls with Rischio.io completely free

Are you looking for software to calculate retaining walls? With Rischio.io you can calculate any type of retaining wall quickly and easily. Our platform is 100% cloud-based, so you can work from anywhere and on any device. Sign up now completely free and discover a new way to create.

Try our platform now! Sign up for free

To check a single wall quickly, the free retaining wall calculator runs the same engine in the browser, with no account, and the lateral earth pressure calculator compares Rankine, Coulomb and the at-rest and passive states.

A cantilever retaining wall in Rischio's editor, its stem selected

The same wall's results in Rischio: four of four checks pass, with the earth pressure on the drawing

Types of retaining walls (and when to use each)

Before sizing a wall, it helps to know which family you are designing, because the type changes which checks dominate:

Gravity walls resist the retained soil with their own weight. Built in concrete, masonry or block, they are the simplest and cheapest option and work well to retained heights of about 3 m; above that the base becomes too wide and heavy.
Cantilever walls (reinforced concrete) use an L- or inverted-T-shaped base so the soil on the heel helps hold the wall up. This is the classic hand-calculated case and suits retained heights of roughly 3–6 m.
Counterfort walls add thin vertical ribs on the front of the stem to spread the bending, and come into their own above about 6 m.
Reinforced soil (MSE) walls hold the fill with geogrids or strips and a facing, and are among the fastest and most cost-effective options for the tallest retained heights.
Embedded walls (sheet pile, diaphragm, contiguous pile) retain soil below grade and are used for basements, underground car parks and excavations.

This guide works through the cantilever case below, which also gives you the checks you will reuse for the other types.

Conventions of a retaining wall

A retaining wall consists of multiple elements or parts, which are shown in the diagram below.

These elements are:

Stem or wall: This is the main structural element of the retaining wall, responsible for resisting the pressure from the retained soil. It can be made of reinforced concrete, masonry, or other structural materials.
Back face: This is the part of the wall that is in contact with the retained soil and bears the lateral earth pressure.
Front face: This is the exposed part of the wall, generally visible and without direct contact with the fill.
Counterfort: These are vertical elements located on the front face of the wall and perpendicular to it. Their function is to reinforce the structure, increasing rigidity and reducing bending moments at the base.
Footing: This is the base of the retaining wall, responsible for distributing loads to the foundation soil to ensure structural stability.
Toe: This is the front part of the footing that extends toward the front face of the wall. It helps improve stability against overturning.
Key: This is an element that protrudes from the bottom of the footing, usually located at the base of the wall. Its main function is to increase resistance to sliding by generating passive earth pressure.
Heel: This is the rear part of the footing that extends into the retained soil, providing additional stability to the wall.
Backfill: This is the granular material or soil placed behind the retaining wall, over the heel. Its purpose is to reduce lateral pressures and facilitate water drainage.

What is analyzed when designing a retaining wall?

When designing a retaining wall, three possible failure mechanisms must be analyzed:

Overturning failure: when the acting moments exceed the resisting moments.
Sliding failure: when the acting horizontal forces exceed the resisting horizontal forces.
Bearing capacity failure: when the vertical forces exceed the bearing capacity of the soil.

Step-by-step guide

Having understood the elements that make up a retaining wall and the failure mechanisms we need to consider, we present the step-by-step process for designing your retaining walls.

0. Preliminary sizing (approximate proportions)

Start from proportions that put you in the right ballpark for a cantilever wall of total height H:

Base width ≈ 0.5 H to 0.67 H
Footing thickness ≈ 0.10 H
Stem thickness at the base ≈ 0.10 H (minimum ~250 mm)
Toe width ≈ 0.25 B to 0.33 B

These are starting values for the checks that follow — you iterate the geometry until every safety factor passes.

1. Calculation of acting forces on the wall

The acting forces on a retaining wall correspond to:

The weight of the structure itself.
The weight of the soil on the heel, including the upper wedge when the backfill is sloped.
The active pressure of the backfill.
The passive pressure of the soil corresponding to the foundation depth on the front face (optional).

2. Safety factor for overturning

To calculate the safety factor for overturning, it is necessary to calculate the acting moments on the wall with respect to the base of the toe.

These moments should be classified into two groups:

Overturning moments: these are the moments that destabilize the structure, generally the horizontal component of the active pressure.

\sum M_O = P_H \cdot \frac{H'}{3}

Resisting moments: these are the moments that stabilize the structure, generally the weight of the structure itself and the weight of the soil on the heel.

\sum M_R = M_1 + M_2 + M_3 + M_4 + M_5 + P_V \cdot B

Note that the equations presented correspond to the case proposed in this article and should be adapted according to the conditions of your projects, which may include multiple types of soil in the backfill, a different type of wall, among others.

Once the overturning moments and resisting moments have been calculated, the safety factor for failure due to overturning should be calculated.

FS_{\text{overturning}} = \frac{\sum M_R}{\sum M_O} \geq 2.0

Usually, this safety factor is expected to be greater than 2.0; however, this value may vary depending on regulations and project requirements.

Also, it should be verified that the eccentricity of the applied loads is less than $B/6$ to avoid stresses at the base of the wall, which would create unsafe conditions for the wall.

e_{max} = \frac{B}{2} - \frac{\sum M_R - \sum M_O}{\sum V} \leq \frac{B}{6}

Where $\sum V$ corresponds to the sum of the vertical forces, which usually include the weight of the structure, the weight of the soil on the heel, and the vertical component of the active pressure.

3. Safety factor for sliding

The calculation of the safety factor for sliding requires calculating the destabilizing horizontal forces and the stabilizing horizontal forces.

Destabilizing forces: This generally includes the active pressure of the soil and the hydrostatic pressure, depending on the wall’s condition.

\sum F_S = P_H

Stabilizing forces: This corresponds to the resistance at the base of the wall and the passive pressure of the soil on the front face (optional).

\sum F_R = \sum V \cdot \tan \delta + B \cdot c'_a + P_p

Where:

$\delta$ corresponds to the friction angle between the base and the foundation soil. It is commonly used that $\delta=\frac{2}{3} \phi'_2$
$c'_a$ corresponds to the adhesion between the base and the foundation soil. It is commonly used that $c'_a=\frac{2}{3} c'_2$

With these variables, the safety factor for sliding is calculated.

FS_{\text{sliding}} = \frac{\sum F_R}{\sum F_S} \geq 1.5

Typically, this safety factor is expected to be greater than 1.5; however, this value may vary depending on regulations and project requirements.

4. Safety factor for bearing capacity

Finally, to calculate the safety factor for bearing capacity, we need to calculate the maximum vertical pressure applied to the soil and its bearing capacity.

Maximum vertical pressure: Since it is an eccentric load, the pressure distribution on the soil will not be uniform. The maximum pressure is defined as:

P_{max} = \frac{\sum V}{B} \left( 1 + \frac{6 \cdot e}{B} \right)

An additional verification is that pressures must always be positive, meaning no tension should be generated in the soil.

P_{min} = \frac{\sum V}{B} \left( 1 - \frac{6 \cdot e}{B} \right) > 0

Bearing capacity: In this case, the retaining wall is modeled as a continuous footing, and its bearing capacity is calculated using the General Bearing Capacity Equation or Meyerhof’s equation.

q_{ult} = c'_2 N_c F_{cd} F_{ci} + q N_q F_{qd} F_{qi} + \frac{1}{2} \gamma_2 B' N_\gamma F_{\gamma d} F_{\gamma i}

Where:

$N_c$ , $N_q$ , $N_\gamma$ are the bearing capacity factors of Meyerhof’s equation.
$q = \gamma_2 \cdot Df$ . This value can be affected by the water table level at the front face of the wall.
$B' = B - 2e$ . In some cases, the eccentricity may be negative, so it is recommended to take its absolute value for this calculation.
Depth factors

F_{qd} = 1+2 \tan \phi'_2 (1-\sin \phi'_2)^2 \left( \frac{D_f}{B} \right) \quad \text{for } \frac{D_f}{B} \leq 1

F_{cd} = F_{qd} - \frac{1-F_{qd}}{N_c \tan \phi'_2}

F_{\gamma d} = 1

Inclination factors

F_{ci} = F_{qi} = \left( 1- \frac{\psi}{90°}\right)^2

F_{\gamma i} = \left( 1- \frac{\psi}{\phi'_2}\right)^2

\psi = \tan^{-1} \left(\frac{P_H}{\sum V}\right)

The shape factors ( $F_{cs}$ , $F_{qs}$ , and $F_{\gamma s}$ ) are not included in this equation since, for a continuous footing, they are equal to 1.

Attention should be paid when selecting the soil parameters corresponding to cohesion, friction angle, and unit weight, as these are for the foundation soil and not the backfill.

Once the bearing capacity and maximum pressure are calculated, the safety factor should be computed.

FS_{\text{bearing capacity}} = \frac{q_{ult}}{P_{max}} \geq 3.0

Typically, this safety factor is expected to be greater than 3.0; however, this value may vary depending on regulations and project requirements.

Recommendations if any of the safety factors are not met

There will be situations where the retaining walls do not meet some of the safety factors or conditions mentioned earlier, in which case our design must be reevaluated. It is important to understand the reasons why these factors are not met in order to make decisions that optimize the use of resources in the projects.

Some recommendations to improve the stability of retaining walls are:

Increase the base of the wall: increases the resisting moments, the resistance at the base, and the bearing capacity.
Reduce the height of the wall: decreases the active thrust.
Change the fill material to a lighter one: reduces the active thrust.
Change the type of wall: the geometry especially influences the resisting moments.
Control the water table of the fill: proper management of water on the rear face of the wall should always be done, so it is important to have a good drainage system to prevent water accumulation.

Example calculation

Calculate the factors of safety for overturning, sliding, and bearing capacity for the retaining wall in the following figure.

1. Identify the elements that make up the wall and the forces it is subjected to

In this case, the structure is divided into figures 1, 2, and 3. The soil on the heel corresponds to figures 4 and 5. Lastly, the active thrust ( $P_a$ ) is identified along with its horizontal component ( $P_H$ ) and vertical component ( $P_V$ ).

The active thrust acts on the virtual back, the vertical plane through the end of the heel. Its height $H'$ is the wall’s height, $H = 6.70$ m (the base and the stem), plus the rise of the backfill over the heel:

\begin{aligned} H' &= H + \Delta x \tan{\alpha} \\ &= 6.70 + 2.60 \tan{10°} \\ &= 7.158 \text{m} \quad (\approx 23.5\ \text{ft}) \end{aligned}

2. Calculate active and passive thrust

First, we need to calculate the active thrust coefficient of the fill. The backfill slopes at $\alpha = 10°$ , so we use Rankine’s coefficient for an inclined backfill:

\begin{aligned} K_a &= \cos\alpha \frac{\cos\alpha - \sqrt{\cos^2\alpha - \cos^2\phi'_1}}{\cos\alpha + \sqrt{\cos^2\alpha - \cos^2\phi'_1}} \\ &= \cos 10° \frac{\cos 10° - \sqrt{\cos^2 10° - \cos^2 30°}}{\cos 10° + \sqrt{\cos^2 10° - \cos^2 30°}} \\ &= 0.3495 \end{aligned}

With level ground it would be $\tan^2(45° - \phi'_1/2) = 0.333$ : the slope raises it by about 5%.

The active thrust is calculated quickly as it is a triangular area. It acts parallel to the backfill, at $H'/3$ above the base.

\begin{aligned} P_a &= \frac{1}{2} \cdot \gamma_1 \cdot H'^2 \cdot K_a \\ &= \frac{1}{2} \cdot 18 \cdot 7.158^2 \cdot 0.3495 \\ &= 161.2 \text{kN/m} \quad (\approx 11.0\ \text{kip/ft}) \end{aligned}

Its components are:

\begin{aligned} P_H &= P_a \cos 10° = 158.75 \text{kN/m} \\ P_V &= P_a \sin 10° = 27.99 \text{kN/m} \end{aligned}

Next, we calculate the passive thrust coefficient of the foundation soil.

\begin{aligned} K_{p} &= \tan^2\left( 45° + \frac{\phi'_2}{2} \right)\\ &= \tan^2\left( 45° + \frac{20°}{2} \right) \\ &= 2.0396 \end{aligned}

On the other hand, the passive thrust is a trapezoid, which we define as follows.

\begin{aligned} \text{Upper base} &= 2 \cdot c'_2 \cdot \sqrt{K_p} \\ &= 2 \cdot 10 \cdot \sqrt{2.0396} \\ &= 28.56 \text{kPa} \quad (\approx 0.60\ \text{ksf}) \end{aligned}

\begin{aligned} \text{Lower base} &= \gamma_2 \cdot D_f \cdot K_p + 2 \cdot c'_2 \cdot \sqrt{K_p} \\ &= 18.5 \cdot 1.5 \cdot 2.0396 + 28.56 \\ &= 85.16 \text{kPa} \quad (\approx 1.78\ \text{ksf}) \end{aligned}

Now, we calculate the area of the trapezoid to obtain the passive thrust.

\begin{aligned} P_p &= \frac{\text{Upper base} + \text{Lower base}}{2} \cdot D_f \\ &= \frac{28.56 + 85.16}{2} \cdot 1.5 \\ &= 85.29 \text{kN/m} \quad (\approx 5.84\ \text{kip/ft}) \end{aligned}

3. Calculate the forces and moments applied to the wall

Once the forces are obtained, we need to calculate the weight of each element, its centroid relative to the toe, and with this, we will find the sum of the vertical forces ( $\sum V$ ), and the overturning moments ( $\sum M_O$ ) and resisting moments ( $\sum M_R$ ). The concrete weighs $\gamma_c = 24$ kN/m³ and the soil $\gamma_1 = 18$ kN/m³.

Element	Area (m²)	Vertical force	Horizontal force	$\bar{x}$	$\bar{z}$	$M_R$	$M_O$
1	0.600	14.40	*	0.833	*	12.00	*
2	3.000	72.00	*	1.150	*	82.80	*
3	2.800	67.20	*	2.000	*	134.40	*
4	0.596	10.73	*	3.133	*	33.62	*
5	15.600	280.80	*	2.700	*	758.16	*
$P_H$	*	*	158.75	*	2.386	*	378.78
$P_V$	*	27.99	*	4.000	*	111.96	*
		$\sum V = 473.12$				$\sum M_R = 1132.94$	$\sum M_O = 378.78$

Units in the table: forces in kN/m, moments in kN·m/m, and $\bar{x}$ / $\bar{z}$ in metres, all per metre of wall. For U.S. customary reference, 1 kN/m ≈ 0.0685 kip/ft, 1 kN·m/m ≈ 0.225 kip·ft/ft, and 1 m ≈ 3.28 ft; the totals are $\sum V = 473.12$ kN/m (32.4 kip/ft), $\sum M_R = 1132.94$ kN·m/m (254.7 kip·ft/ft), and $\sum M_O = 378.78$ kN·m/m (85.2 kip·ft/ft).

With these results, the path to calculate the factor of safety for overturning and sliding is cleared.

4. Calculate the factor of safety for overturning and the eccentricity

Following the formula presented earlier, we calculate the factor of safety.

\begin{aligned} FS_{\text{overturning}} &= \frac{\sum M_R}{\sum M_O} \geq 2.0\\ &= \frac{1132.94}{378.78} \geq 2.0\\ &= 2.99 \geq 2.0 \end{aligned}

The safety factor requirement is met.

On the other hand, the eccentricity check.

\begin{aligned} e &= \frac{B}{2} - \frac{\sum M_R - \sum M_O}{\sum V} \leq \frac{B}{6}\\ &= \frac{4}{2} - \frac{1132.94 - 378.78}{473.12} \leq \frac{4}{6} \\ &= 0.406\ \text{m}\ (\approx 1.33\ \text{ft}) \leq 0.667\ \text{m}\ (\approx 2.19\ \text{ft}) \end{aligned}

The eccentricity requirement is met.

5. Calculate the factor of safety for sliding

Applying the equation presented, with $\delta = \tfrac{2}{3} \cdot 20° = 13.33°$ and $c'_a = \tfrac{2}{3} \cdot 10 = 6.67$ kPa:

\begin{aligned} FS_{\text{sliding}} &= \frac{\sum V \cdot \tan \delta + B \cdot c'_a + P_p}{P_H} \geq 1.5 \\ &= \frac{473.12 \cdot \tan 13.33° + 4 \cdot 6.67 + 85.29}{158.75} \geq 1.5 \\ &= 1.41 < 1.5 \end{aligned}

The safety factor requirement is not met, and that already counts the passive thrust in front of the wall: without it, if that soil were excavated or eroded, the factor of safety would drop to 0.87.

6. Calculate the factor of safety for bearing capacity

We have reached the final verification, for which we will also use the values calculated in step 3.

We begin by calculating the maximum pressure on the soil.

\begin{aligned} P_{max} &= \frac{\sum V}{B} \left( 1 + \frac{6 \cdot e}{B} \right) \\ &= \frac{473.12}{4} \left( 1 + \frac{6 \cdot 0.406}{4} \right) \\ &= 190.31 \text{kPa} \quad (\approx 3.97\ \text{ksf}) \end{aligned}

Now, we verify that the minimum pressure is positive to avoid soil tension.

\begin{aligned} P_{min} &= \frac{\sum V}{B} \left( 1 - \frac{6 \cdot e}{B} \right) > 0 \\ &= \frac{473.12}{4} \left( 1 - \frac{6 \cdot 0.406}{4} \right) > 0 \\ &= 46.25 \text{kPa} \quad (\approx 0.97\ \text{ksf}) \end{aligned}

The verification is correct.

Now, we have the denominator for the safety factor, and we just need to calculate the bearing capacity.

We start with the bearing capacity factors for $\phi'_2 = 20°$ .

N_c = 14.83

N_q = 6.40

N_\gamma = 5.39

Next, we calculate the overburden pressure and the effective width of the footing.

\begin{aligned} q &= \gamma_2 \cdot D_f \\ &= 18.5 \cdot 1.5 \\ &= 27.75 \text{kPa} \quad (\approx 0.58\ \text{ksf}) \end{aligned}

\begin{aligned} B' &= B - 2e\\ &= 4 - 2 \cdot 0.406\\ &= 3.188 \text{m} \quad (\approx 10.46\ \text{ft}) \end{aligned}

Then, we use the depth factors.

\begin{aligned} F_{qd} &= 1+2 \tan \phi'_2 (1-\sin \phi'_2)^2 \left( \frac{D_f}{B} \right)\\ &= 1+2 \tan 20° (1-\sin 20°)^2 \left( \frac{1.5}{4} \right)\\ &= 1.1182 \end{aligned}

\begin{aligned} F_{cd} &= F_{qd} - \frac{1-F_{qd}}{N_c \tan \phi'_2} \\ &= 1.1182 - \frac{1-1.1182}{14.83 \tan 20°} \\ &= 1.1401 \end{aligned}

\begin{aligned} F_{\gamma d} &= 1 \end{aligned}

Lastly, we calculate the inclination factors.

\begin{aligned} \psi &= \tan^{-1} \left(\frac{P_H}{\sum V}\right)\\ &= \tan^{-1} \left(\frac{158.75}{473.12}\right)\\ &= 18.55° \end{aligned}

\begin{aligned} F_{ci} = F_{qi} &= \left( 1- \frac{\psi}{90°}\right)^2 \\ &= \left( 1- \frac{18.55°}{90°}\right)^2 \\ &= 0.6303 \end{aligned}

\begin{aligned} F_{\gamma i} &= \left( 1- \frac{\psi}{\phi'_2}\right)^2 \\ &= \left( 1- \frac{18.55°}{20°}\right)^2 \\ &= 0.0053 \end{aligned}

With these values, we can now calculate the soil bearing capacity.

\begin{aligned} q_{ult} &= c'_2 N_c F_{cd} F_{ci} + q N_q F_{qd} F_{qi} + \tfrac{1}{2} \gamma_2 B' N_\gamma F_{\gamma d} F_{\gamma i} \\ &= 10 \cdot 14.83 \cdot 1.1401 \cdot 0.6303 + 27.75 \cdot 6.40 \cdot 1.1182 \cdot 0.6303 \\ &\quad + \tfrac{1}{2} \cdot 18.5 \cdot 3.188 \cdot 5.39 \cdot 1 \cdot 0.0053 \\ &= 106.57 + 125.17 + 0.84 \\ &= 232.6 \text{kPa} \quad (\approx 4.86\ \text{ksf}) \end{aligned}

Finally, we calculate the safety factor.

\begin{aligned} FS_{\text{bearing capacity}} &= \frac{q_{ult}}{P_{max}} \geq 3.0 \\ &= \frac{232.6}{190.31} \geq 3.0\\ &= 1.22 < 3.0 \end{aligned}

In this case, the requirements for sliding and bearing capacity are not met, so the wall must be redesigned following the recommendations in this guide and checked again. A good starting point is a wider base: it adds weight and lever arm and spreads the load over more soil.

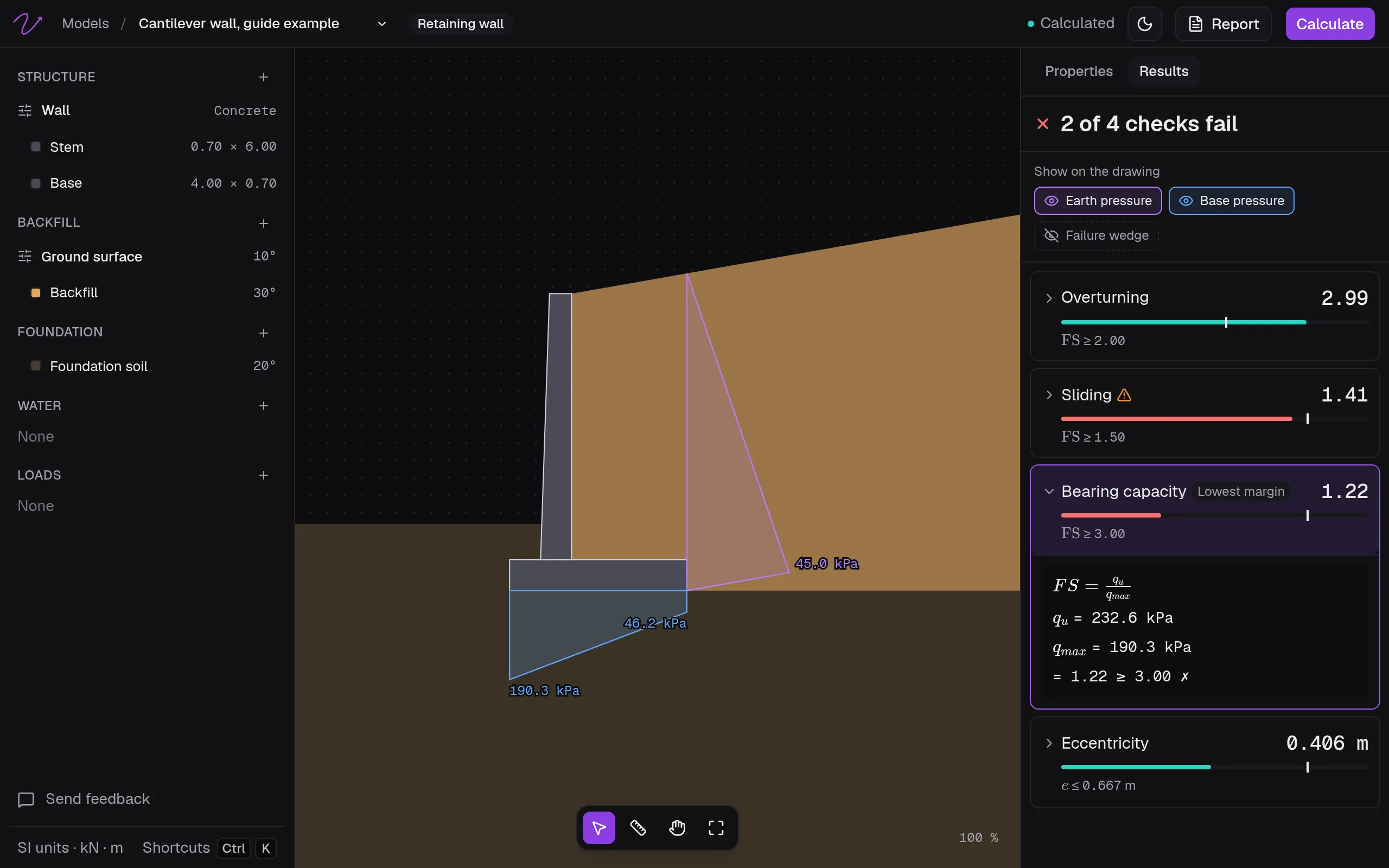

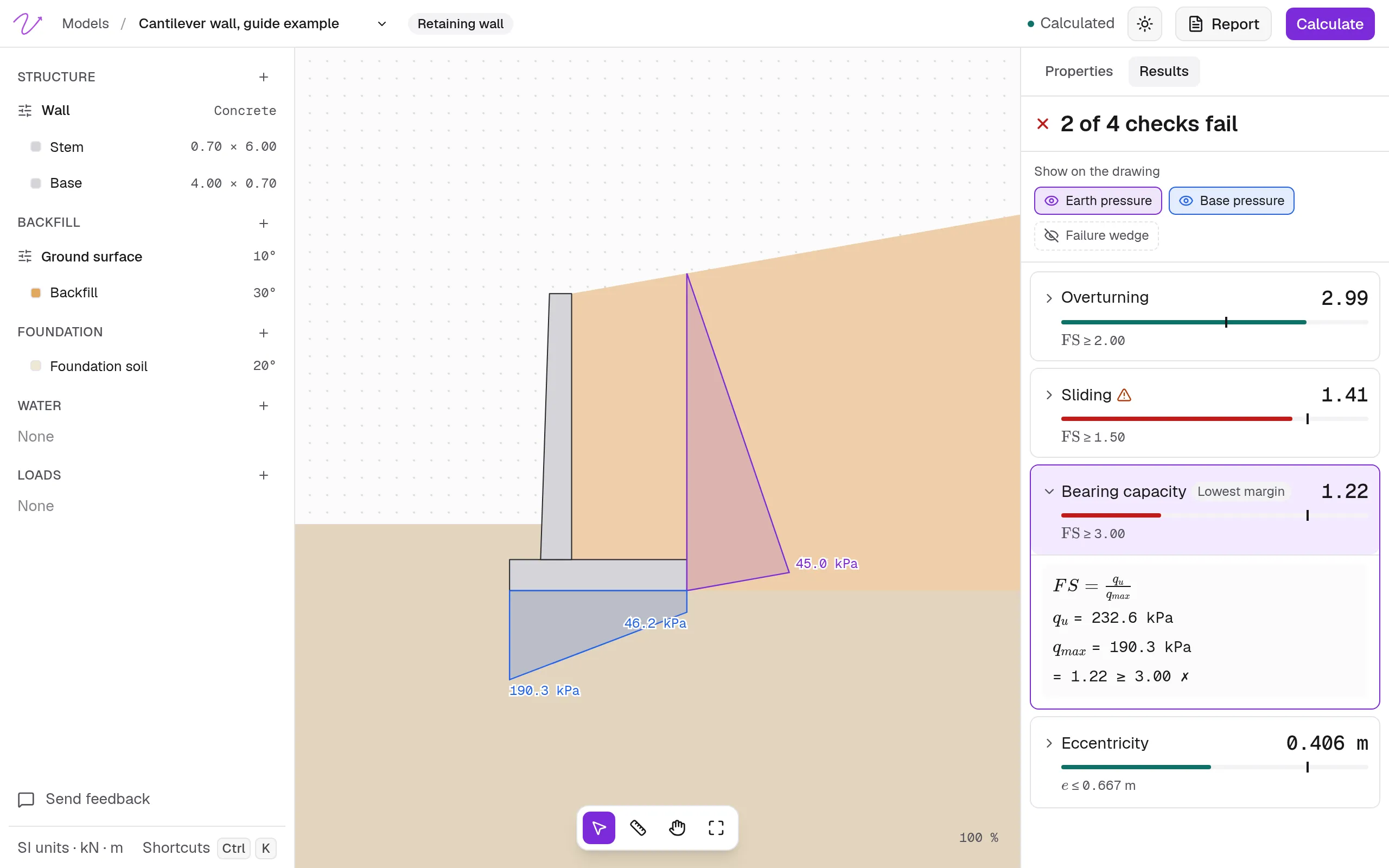

The same wall in Rischio gives the same factors of safety: 2.99 for overturning, 1.41 for sliding and 1.22 for bearing capacity, with $q_u$ = 232.6 kPa and $q_{max}$ = 190.3 kPa. Rischio also warns that the sliding check relies on the passive resistance in front of the wall.

The example wall in Rischio: overturning 2.99 passes, sliding 1.41 and bearing capacity 1.22 fail, with qu = 232.6 kPa and qmax = 190.3 kPa; eccentricity 0.406 m

Frequently asked questions

What are the main types of retaining walls?

Gravity walls, which hold the soil with their own weight; cantilever walls of reinforced concrete, which use the soil over the heel as well; counterfort walls, with ribs that stiffen a tall stem; reinforced soil (MSE) walls; and embedded walls such as sheet piles and diaphragm walls. The height to retain decides most of the choice: gravity walls to about 3 m, cantilever walls from 3 to 6 m, counterfort walls above that.

How thick does a retaining wall need to be?

The checks decide, but a cantilever wall usually starts from a base of 0.5 to 0.67 times its height, a footing about a tenth of the height thick and a stem about as thick at its base, never much under 250 mm. Then the factors of safety say whether it works, and the wall is resized until they all pass.

What factors of safety does a retaining wall need?

The usual minimums are 2.0 against overturning, 1.5 against sliding and 3.0 against bearing capacity failure, with the resultant inside the middle third of the base. Codes and project specifications can ask for other values, and the ones that apply come from them.

What is the middle third rule?

The resultant of the forces on the wall has to cross the base within its middle third, an eccentricity $e \le B/6$ . Then the whole base presses on the soil. Beyond it, $q_{min}$ turns negative and that edge of the base lifts off, so the pressure under the rest grows.

Why do retaining walls fail?

Most often because of water. A backfill that doesn’t drain adds the full hydrostatic pressure to the earth pressure, more than many walls were designed for. The other usual causes are a heavier surcharge than assumed, a weak foundation soil and the passive resistance in front of the toe being dug away. To check a wall of your own against all four checks, use the free retaining wall calculator.

References

Das, B. M., & Sivakugan, N. (2018). Principles of Foundation Engineering.
