Create a model with AI
Describe a retaining wall, a footing, piles or a channel in a sentence: Rischio's AI builds the model, lists what it assumed and leaves it for you to calculate.

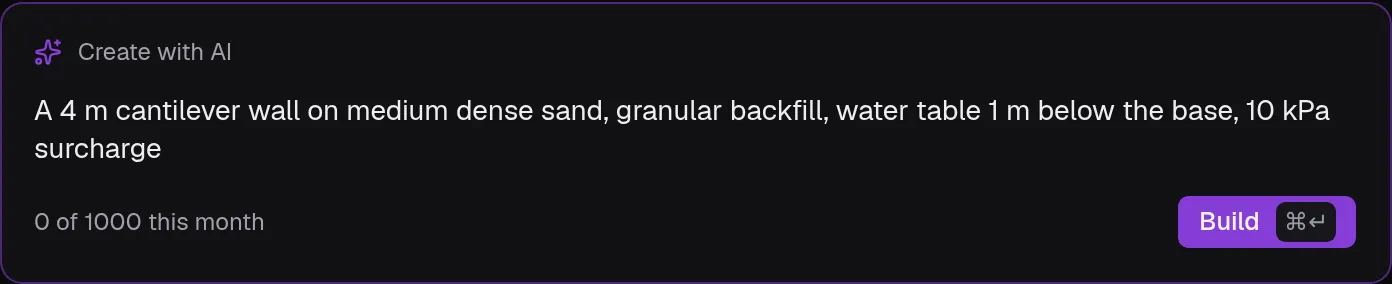

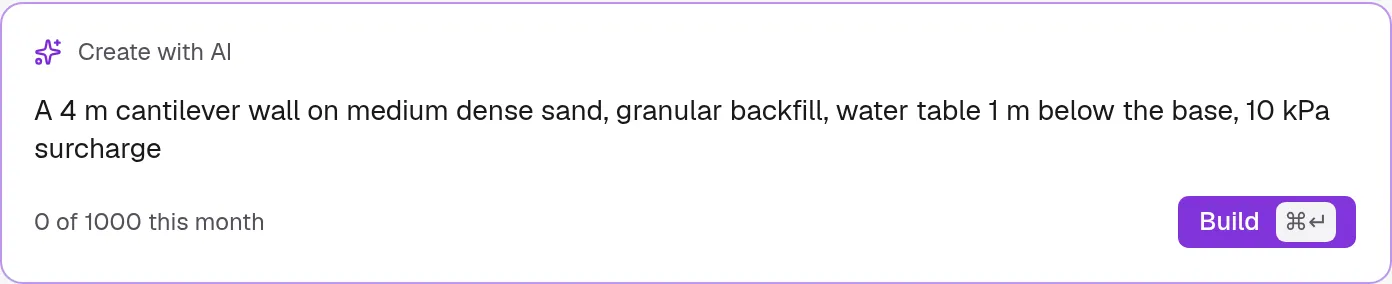

On the studio’s home page, Create with AI takes a description in your own words and builds the model in the editor. The AI picks the values, the engine checks them, and when you press Calculate the engine does every calculation: no number in the results comes from the AI.
Describe it
Write it as you’d tell a colleague, in English or in Spanish, with the dimensions, soils, water and loads you know. For example:
- “A 6 m cantilever wall on silty clay, granular backfill, water table at 4 m, 10 kPa surcharge”
- “A 2 × 2 m square footing 1.5 m deep carrying 800 kN on dense sand”
- “A group of four 0.6 m bored piles, 18 m long, through soft clay into stiff clay”
- “A trapezoidal earth channel, 2 m bed, 1.5:1 side slopes, 0.2 % slope, carrying 3 m³/s”
Then Build, or ⌘↵ (Ctrl+Enter). It usually takes 5 to 20 seconds. Values in other units come into the model in SI.
What it builds
What the four tools model:
- concrete or masonry retaining walls (gravity, cantilever, L or T) and gabion walls, with their backfill, foundation soil, water and surcharge;
- rectangular, square and strip footings;
- a single pile or a group, bored or driven;
- open channels of any cross-section, with their roughness, slope and discharge.
Ask for something the tools don’t model, such as slope stability, sheet piles or a pressure pipe, and it says so and suggests what it can build instead.
Check it, then calculate
The model opens in the editor without results. Properties shows a Built with AI card with your description and each value the AI had to assume because the description didn’t give it. Review them, change what doesn’t match your case, and calculate.
Good and Not good, on that card, tell us how it went. A Not good, with a line about what was wrong if you want, reaches the Rischio team along with your description.
How many a month
| Plan | Models built with AI, a month |
|---|---|
| Free | 10 |
| The Professional trial | 10 |
| Education | 10 |
| Professional | 1000 |
Only the models the AI builds count for the month. A description it declines, or one it couldn’t build, counts only toward the day’s tries.
From your own agent
To build and calculate models from Claude, ChatGPT or Cursor, connect it: Connect your agent.
